Lumeno magnifying lamp series 861X. Optimal field of view due to oval lens and 60 energy-efficient super-bright LEDs.
The shapely lamp head with the oval real glass lens of 110 x 150 mm provides an optimal field of view with only little distortion. The magnifier is optionally available with a magnification of 3 or 5 dioptres.
With the sophisticated arm mechanism, the lamp can be easily aligned. A protective rubber edge provides a better grip and a certain shock resistance.
60 super-bright SMD LEDs with particularly high luminosity ensure uniform illumination of the working area. These are arranged in a closed row on the underside of the lamp head.
Depending on the requirements, the brightness can be switched to two levels. The first stage shines with 400 lumens and the second stage with 820 lumens of luminous flux.
The modern LEDs convince with their low power consumption as well as their long service life.
With a colour temperature similar to daylight, the professional magnifying lamp is suitable for both cosmetic and manual work and also cuts a fine figure as a reading aid for home use.

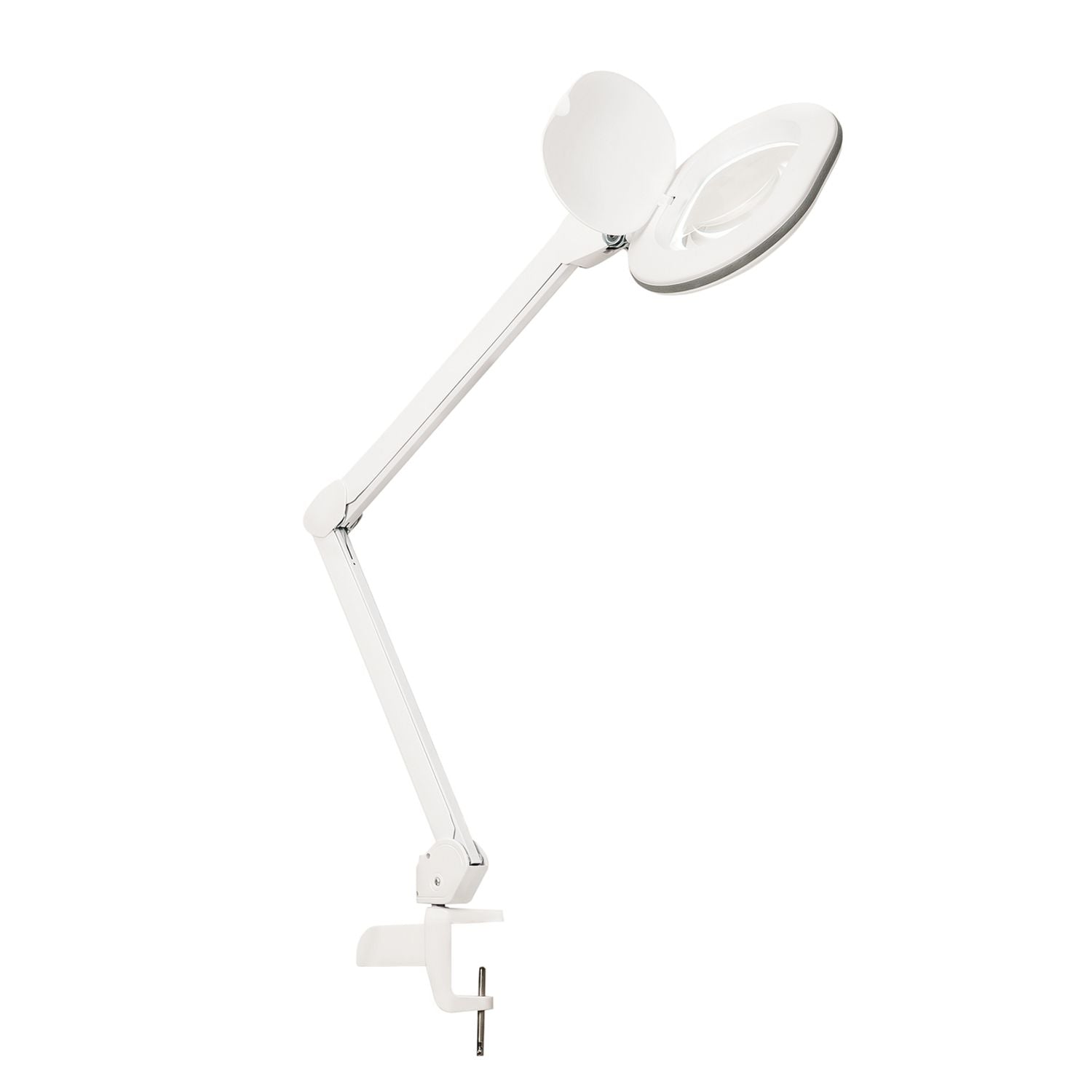

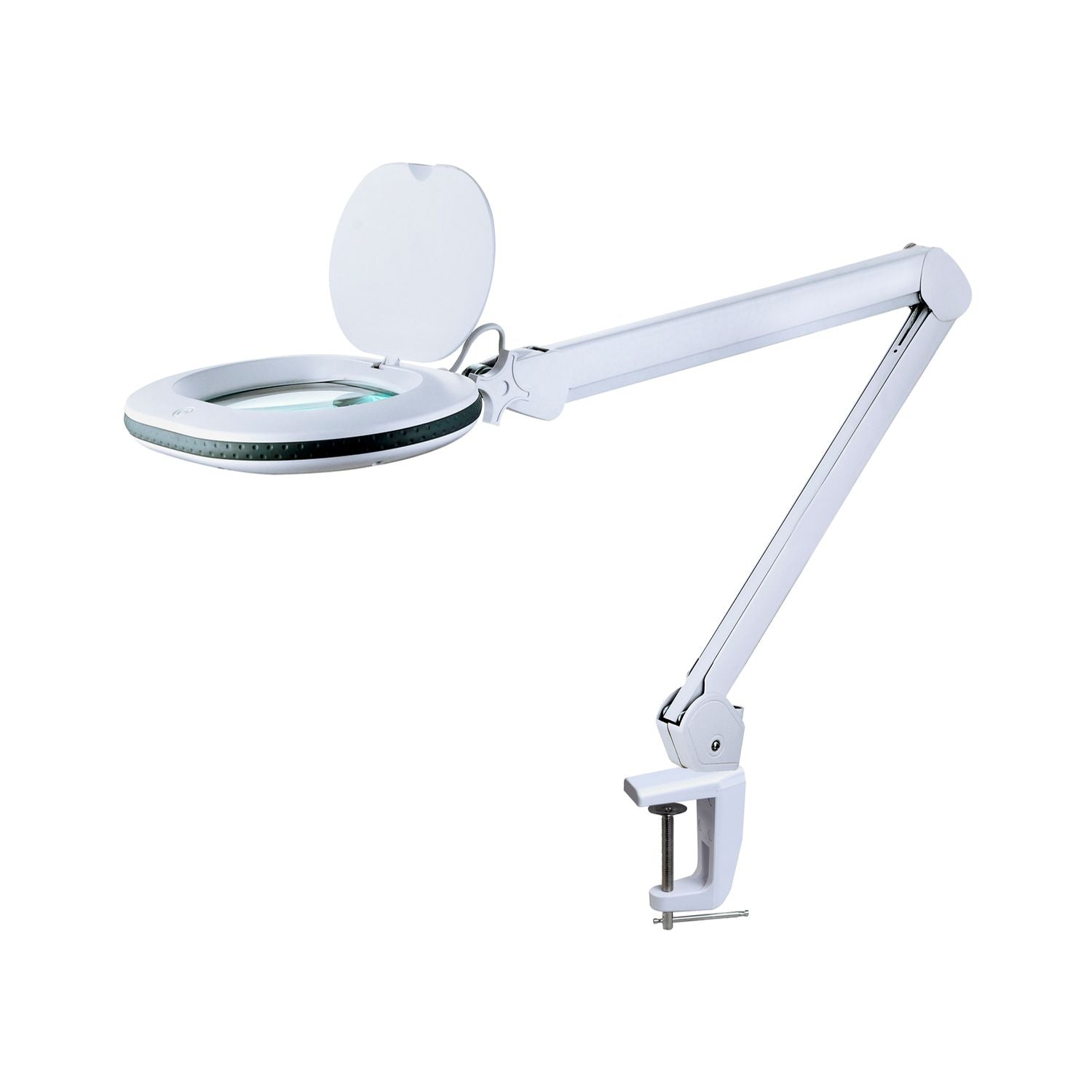

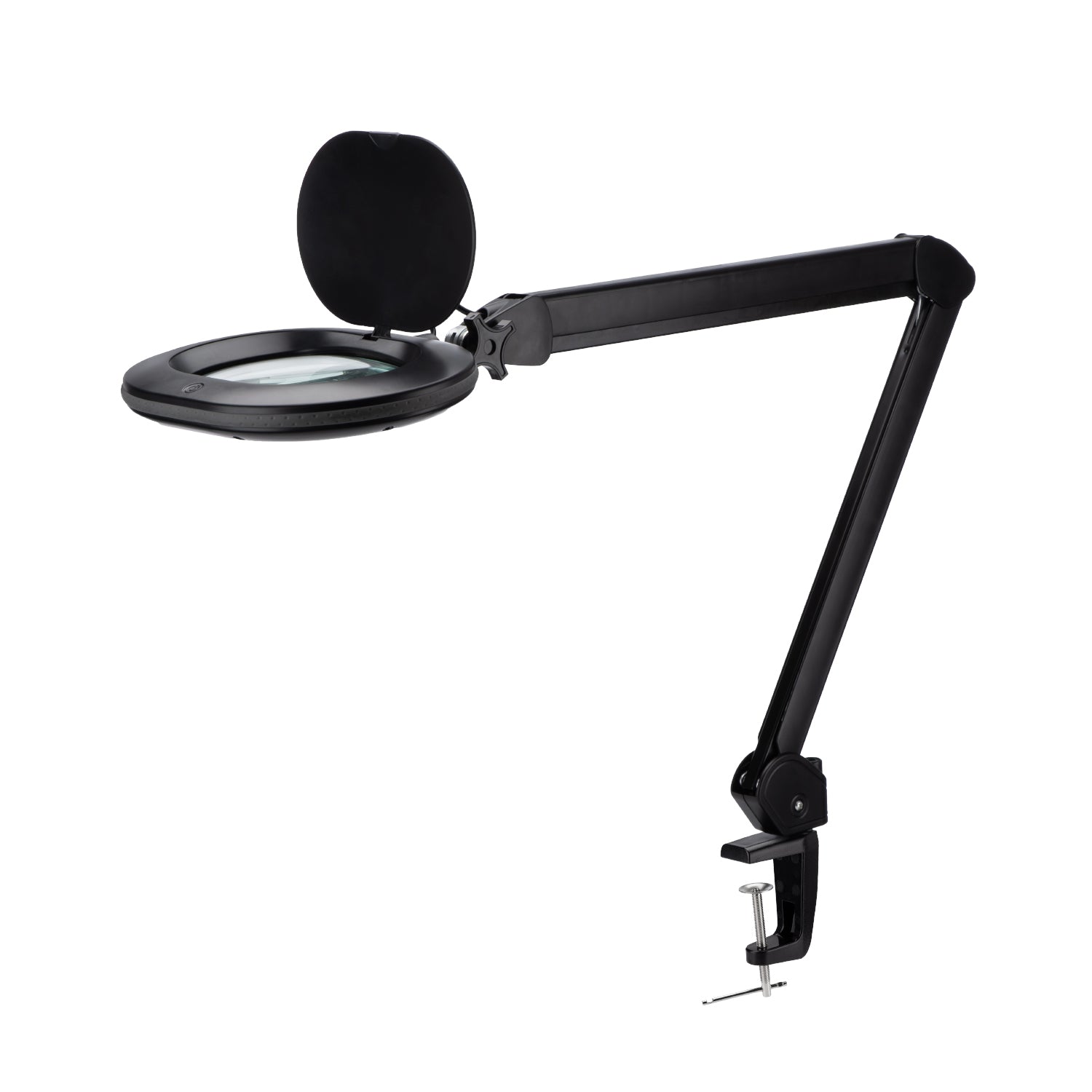

The supplied clamp fits table tops with a thickness of up to 65 mm and can be attached quickly and stably.
Springs specially adjusted to the weight of the lamp head ensure exact alignment. The cover above made of robust plastic prevents the risk of jamming and can be easily cleaned if necessary. A hinged cover protects the lens against dust and burning glass and remains open in position without interfering with work.
A power supply unit with safe extra-low voltage is used for the power supply.
The shapely lamp head with the oval real glass lens of 110 x 150 mm provides an optimal field of view with only little distortion. The magnifier is optionally available with a magnification of 3 or 5 dioptres.
With the sophisticated arm mechanism, the lamp can be easily aligned. A protective rubber edge provides a better grip and a certain shock resistance.
60 super-bright SMD LEDs with particularly high luminosity ensure uniform illumination of the working area. These are arranged in a closed row on the underside of the lamp head.
Depending on the requirements, the brightness can be switched to two levels. The first stage shines with 400 lumens and the second stage with 820 lumens of luminous flux.
The modern LEDs convince with their low power consumption as well as their long service life.
With a colour temperature similar to daylight, the professional magnifying lamp is suitable for both cosmetic and manual work and also cuts a fine figure as a reading aid for home use.
The supplied clamp fits table tops with a thickness of up to 65 mm and can be attached quickly and stably.
Springs specially adjusted to the weight of the lamp head ensure exact alignment. The cover above made of robust plastic prevents the risk of jamming and can be easily cleaned if necessary. A hinged cover protects the lens against dust and burning glass and remains open in position without interfering with work.
A power supply unit with safe extra-low voltage is used for the power supply.
Spezifikationen
Vergrößerung | in 3 Dpt (1.75x) or 5 Dpt (2.25x) |
Gehäusefarbe | white |
Farbe Schutzkante | Gray, similar to RAL 7001 |
Helligkeit | 400 lumen (level I), 800 lumen (level II) |
Leuchtmittel | 60 ultrahelle SMD LEDs |
Leistung | max. 10 Watt (10 kWh / 1000 h) |
Stromaufnahme | 5.1 Watt (level I), 9.2 Watt (level II) |
Standby-Verbrauch | 0.3 W |
Energieeffizienzklasse | F |
Lichtfarbe | similar to daylight |
Farbtemperatur | 6500 K |
Farbwiedergabeindex (CRI) | > 80 Ra |
LED Lebensdauer | up to 25,000 hours |
Linse | oval glass lens |
Arbeitsradius (Abstand Linsenmitte bis unteres Gelenk) | approx. 1050 mm |
Länge des oberen Armsegments | 420 mm |
Länge des unteren Armsegments | 420 mm |
Lupendurchmesser | 110x150 mm |

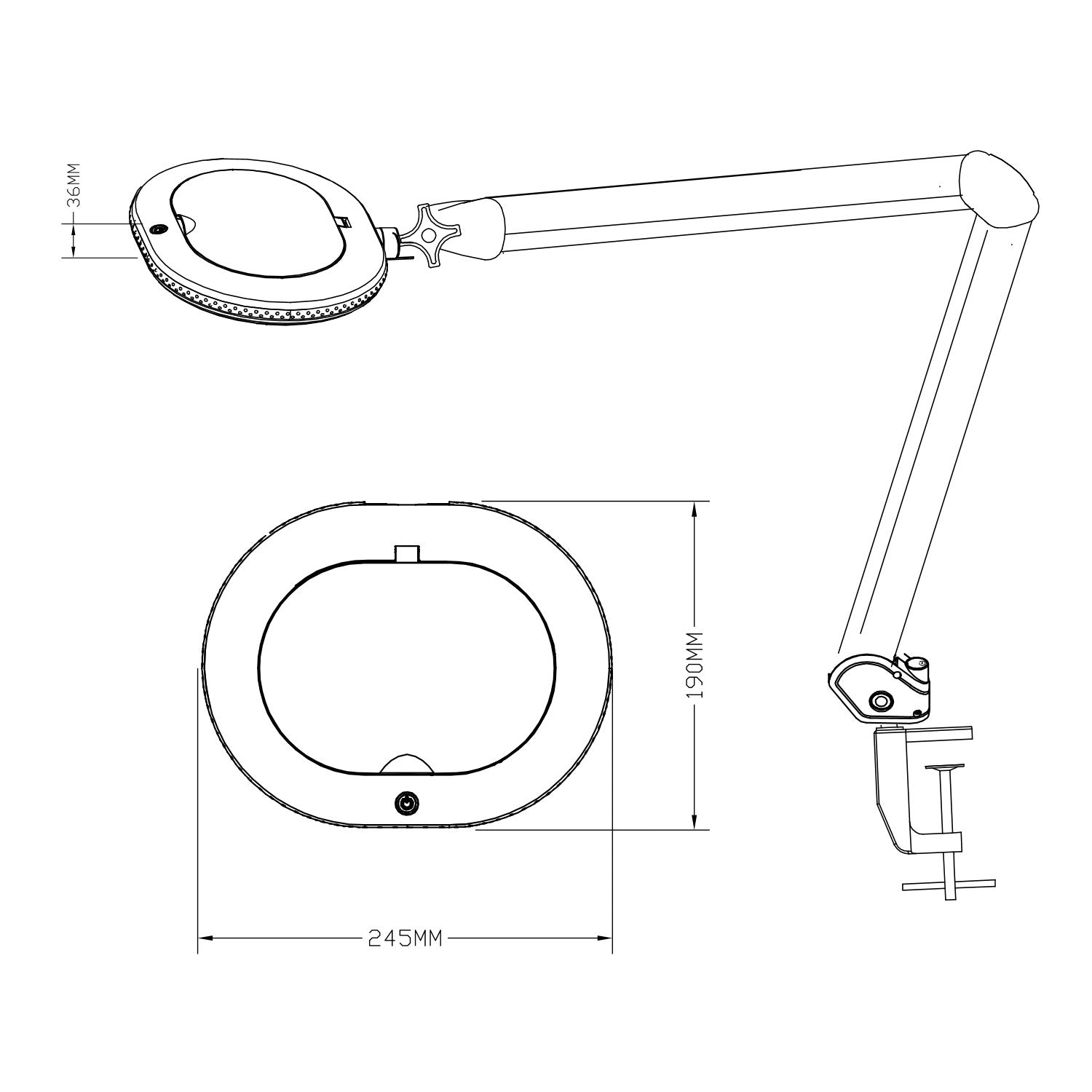

Maße Lampenkopf | (LxWxH) 190 x 245 x 42 mm |
Kabellänge | 150 cm |
Lieferumfang | Magnifying lamp, power supply unit 20 V/ 0.5 A, table clamp, instructions |
Hersteller WEEE-Nr. | DE20114722 |
